Integrated Model

Running an integrated model in MIKE+ produces separate simulation log and summary files for the network and 2D overland components in the project directory.

An HTML file is generated from the model coupling engine at the end of an integrated model simulation. The file is named with the suffix ‘_mf.html’, and prefixed with the MIKE+ project name.

For example, ‘IntegratedFloodModelFinal_mf.html’ is generated from a coupled model simulation from the MIKE+ model setup ‘IntegratedModelFinal.mupp.’

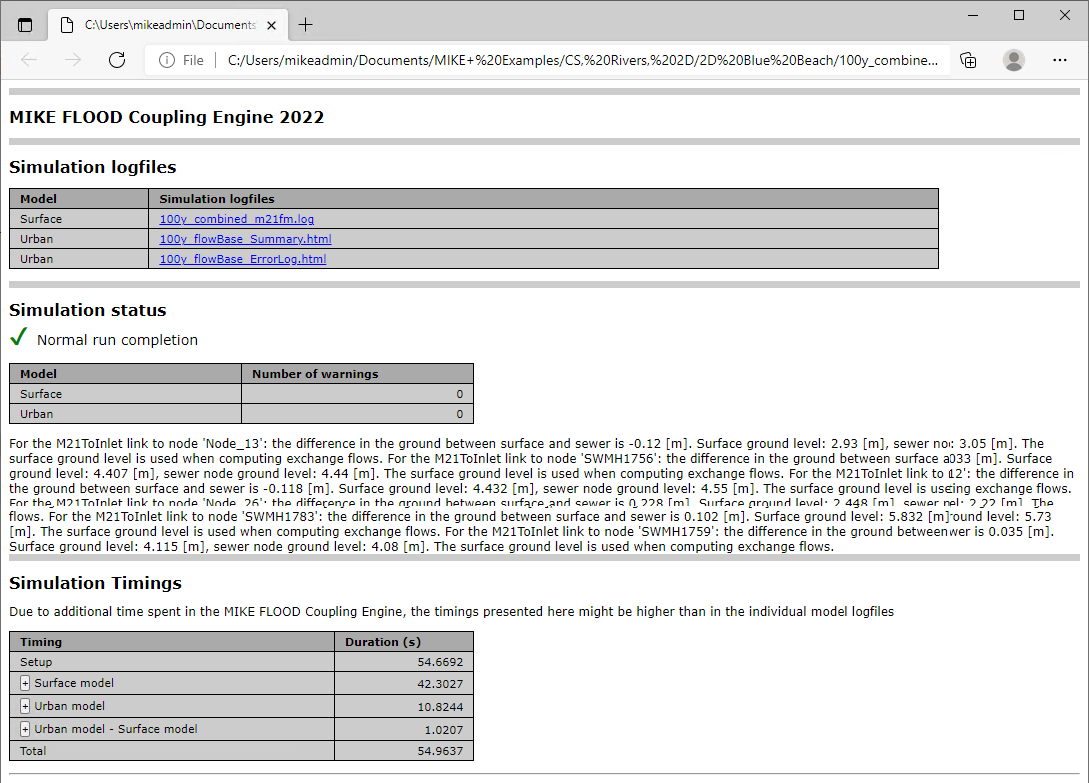

Figure: Example of integrated model simulation summary

The file presents links to simulation log and summary files for the various components of the integrated model:

• 2D model simulation log
• Network model summary html
• Network model simulation log html
