SWQ Global Data¶
Model parameters included in SWQ Global data apply for entire model and for SWQ advanced methods only.

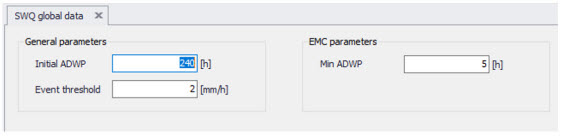

Figure: SWQ Global Data editor
An overview of SWQ Global Data editor attributes is provided in the table below.
| Edit Field | Description | Usage | Attribute Table Field |
|---|---|---|---|
| Initial ADWP | Duration of antecedent dry weather period before the start of the simulation [hours] | Build-up /Wash-off and EMC methods | ADWPIni |
| Event threshold | Peak rainfall intensity in a rainfall event, used as a minimum threshold to include the rainfall event in the SQW computation | EMC method | EventThreshold |
| Min ADWP | Any two rain intervals separated by a dry interval are considered as the continuous rain event if the dry interval between the two wet-weather periods is less than the specified ADWPmin | EMC method | ADWPMin |
Table: Overview of the SWQ Global Data editor attributes (Table msm_SWQGlobalData)
