MIKE ECO Lab Constants

Constants are values which are fixed in time and affect some of the processes on the state variables. They are automatically listed in this editor when the MIKE ECO Lab template is imported, from the 'MIKE ECO Lab templates' editor.

This editor is used for setting the values of the constants used in the MIKE ECO Lab model, typically during model calibration:

• ID: Unique MIKE ECO Lab constant identifier in MIKE+.
• MIKE ECO Lab template: MIKE+ ID for the template to which the constant belongs.
• Constant ID: Constant identifier in MIKE ECO Lab template.
• Value: Value for the constant, when it’s defined as uniform
• File name: Path and file name for the 2D data file containing the constant values, when the constant is defined as varying in domain (only available when the MIKE ECO Lab template is connected to the 2D overland model).
• Item: Data item selected in the file.
• Description: Free text description for the constant defined in the Description tab page of the editor.

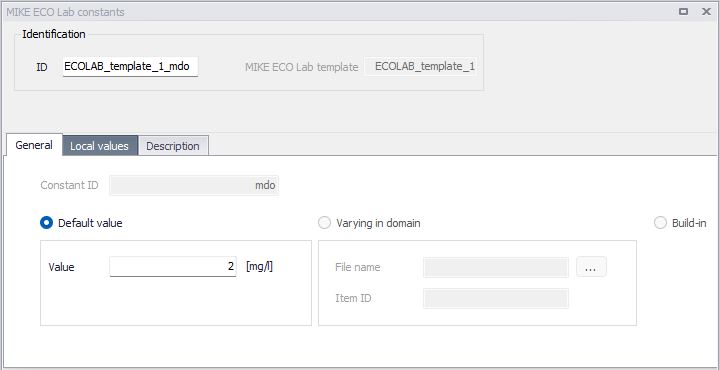

Figure: The MIKE ECO Lab Constants editor

Note

Note that the active fields in the editor are only those for specifying uniform values or input files. The remaining fields are read-only.
