Materials¶
In MIKE+, a link may be characterised by material, which determines the Manning friction coefficient (Manning), the Colebrook-White coefficient (EQ Roughness), or Hazen-Williams coefficient (H-W Coefficient) for the conduit. It is optional to use either the default roughness values for specific materials or local values.
Specification of the different kind of materials and roughness coefficients is done through the Materials editor.

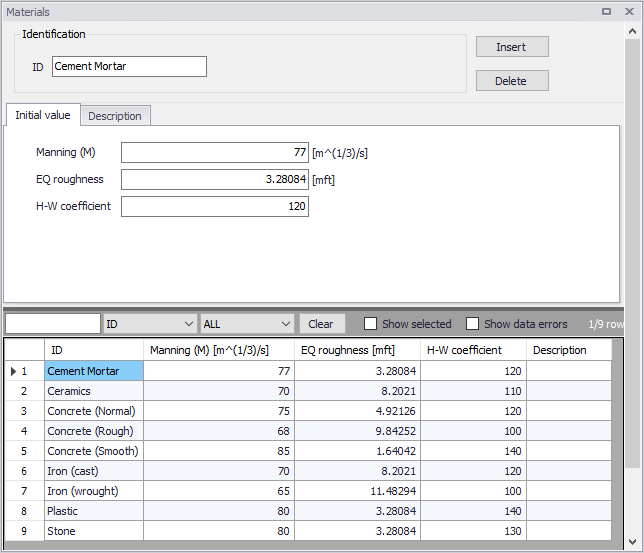

Figure: Materials editor
MIKE+ has the following pre-defined Material types with friction loss properties:
- Cement Mortar
- Ceramics
- Concrete (Normal)
- Concrete (Rough)
- Concrete (Smooth)
- Iron (cast)
- Iron (wrought)
- Plastic
- Stone.
| Edit field | Description | Used or required by simulations | Field name in datastructure |
|---|---|---|---|
| ID | Material type ID | Yes | MUID |
| Manning | Manning roughness value | Yes If ‘Manning Explicit’ or ‘Manning Implicit’ is used | Manning |
| EQ Roughness | Equivalent roughness | Yes If ‘Colebrook-White’ formulation is used | EQRough |
| H-W Coefficient | Hazen-Williams roughness coefficient | Yes If ‘Hazen-Williams’ is used | HWCoef |
| Description | User’s descriptive information on the material | Optional | Description |
Table: Edit fields in the Materials editor (ms_Material)
